JINSOR Kevlar (para aramid) fiber fabrics detail specifications and application
1. sporting goods: golf shaft,tennis racket,ski board,snow board,surfboard,fishing rod,bicycle fram...
2. car parts: hood,front fender,steering wheel,gear shift,mirror cover,trunk cover.
3. Bullet proof vest ,bullet proof panel,bullet proof car
4. boat parts: yacht,kayak,loom,loom blade,boat shell.
5. Electronic parts:speaker cone,mobile phone shell.
| Code No (pictures) |
woven pattern | thickness (mm) |
width(cm) | weight (g/m2) |
counts/inch | fiber | photos per inch |
|||
| warp | weft | warp | weft | |||||||

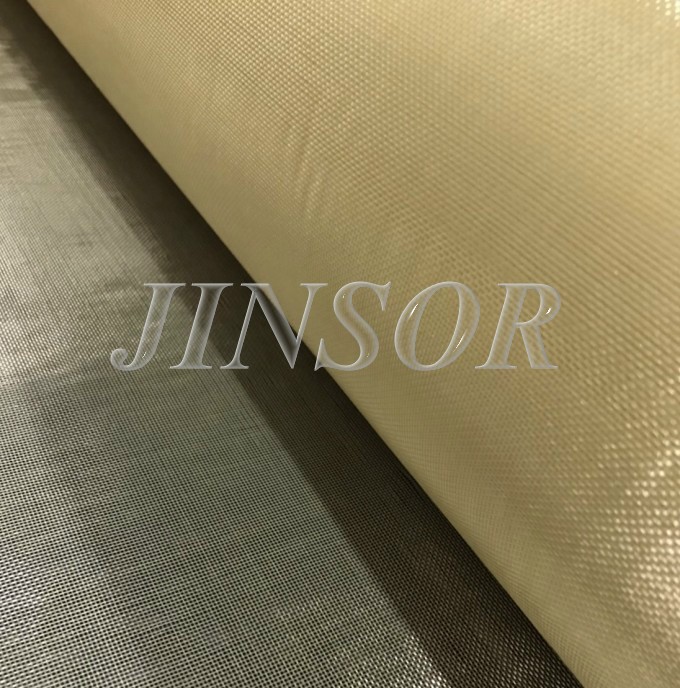

| JSKK 0131P | Plain | 0.05 | 100~152 | 25 | 21.5 | 21.5 | 130Dr Kevlar | 130Dr Kevlar |  |
|
| JSKK 0201P | Plain | 0.1 | 100~152 | 57 | 32 | 32 | 200Dr Kevlar | 200Dr Kevlar |  |
|

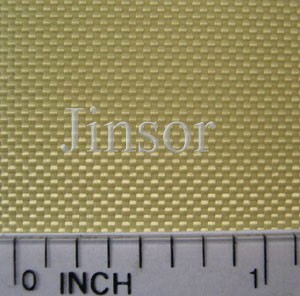

| JSKK 0401P | Plain | 0.17 | 100~152 | 114 | 32 | 32 | 400Dr Kevlar | 400Dr Kevlar |  |
|

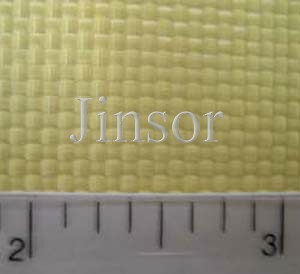

| JSKK 1001P | Plain | 0.28 | 100~152 | 190 | 21.5 | 21.5 | 1000Dr Kevlar | 1000Dr Kevlar |  |
|

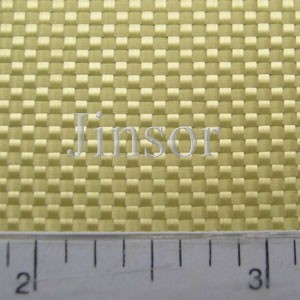

| JSKK 1101P | Plain | 0.28 | 100~152 | 180 | 18.5 | 18.5 | 1100Dr Kevlar49 | 1100Dr Kevlar49 |  |
|

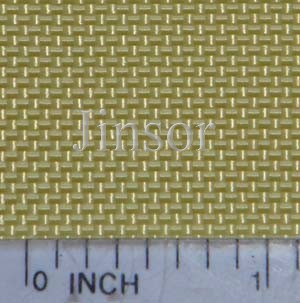

| JSKK 1401P | Plain | 0.42 | 100~152 | 300 | 23 | 22.5 | 1420Dr Kevlar49 | 1420Dr Kevlar49 |  |
|

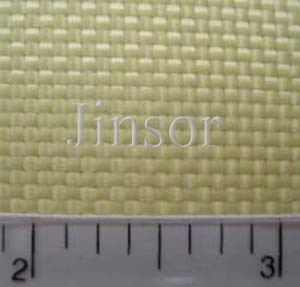

| JSKK 1501P | Plain | 0.37 | 100~152 | 235 | 17 | 17 | 1500Dr Kevlar | 1500Dr Kevlar |  |
|

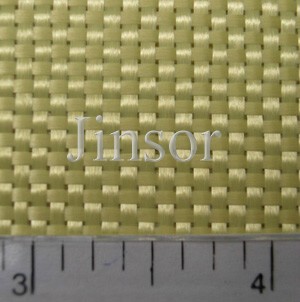

| JSKK 1502P | Plain | 0.3 | 100~152 | 180 | 13 | 13 | 1500Dr Kevlar | 1500Dr Kevlar |  |
|
| JSKK 1511T | Twill 2x2 | 0.37 | 100~152 | 235 | 17 | 17 | 1500Dr Kevlar | 1500Dr Kevlar |  |
|

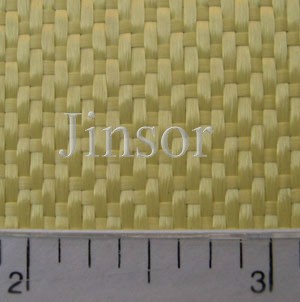

| JSKK 1521S | 4HS Satin | 0.37 | 100~152 | 242 | 18 | 18.5 | 1500Dr Kevlar | 1500Dr Kevlar |  |
|

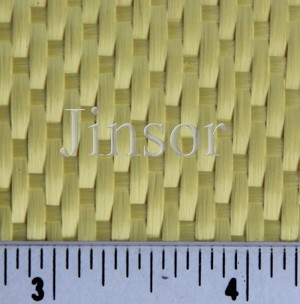

| JSKK 2821S | 5HS Satin | 0.46 | 100~152 | 300 | 11.5 | 11.5 | 2840Dr Kevlar49 | 2840Dr Kevlar49 |  |
|

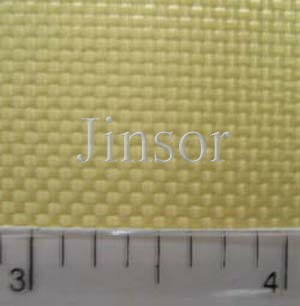

| JSKK 3001P | Plain | 0.58 | 100~152 | 460 | 16.5 | 16.5 | 3000Dr Kevlar | 3000Dr Kevlar |  |
|

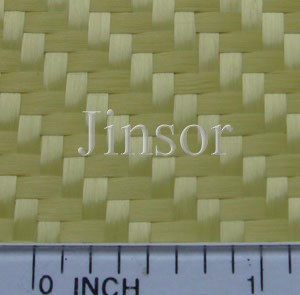

| JSKK 3012T | Twill 2x2 | 0.42 | 100~152 | 300 | 10 | 10 | 3000Dr Kevlar | 3000Dr Kevlar |  |
|
