JINSOR Kevlar & ballistic fabrics detail specifications

Application:ballistic vest,ballistic jacket,ballistic panel,ballistic car

Code No
(pictures)		 woven pattern thickness
(mm)		 width(cm) weight
(g/m2)		 counts/inch fiber length/roll(m)
warp weft warp weft
JSKK 0801P Plain 0.3 100~152 200 26 26 840Dr Kevlar 840Dr Kevlar 100
JSKK 1001P Plain 0.28 100~152 190 21.5 21.5 1000Dr Kevlar 1000Dr Kevlar 100
JSKK 1101P Plain 0.28 100~152 180 18.5 18.5 1100Dr Kevlar49 1100Dr Kevlar49 100
JSKK 1501P Plain 0.37 100~152 235 17 17 1500Dr Kevlar 1500Dr Kevlar 100
JSKK 1502P Plain 0.3 100~152 180 13 13 1500Dr Kevlar 1500Dr Kevlar 100
JSKK 3001P Plain 0.58 100~152 450 16.5 16.6 3000Dr Kevlar 3000Dr Kevlar 100

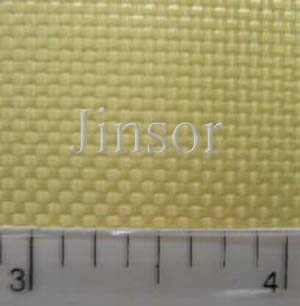

JSTT 3001P Plain 0.58 100~152 460 17 17 3000Dr Twaron 3000Dr Twaron 100
K: Kevlar Fiber, T: Twaron Fiber, H: Heracron Fiber
